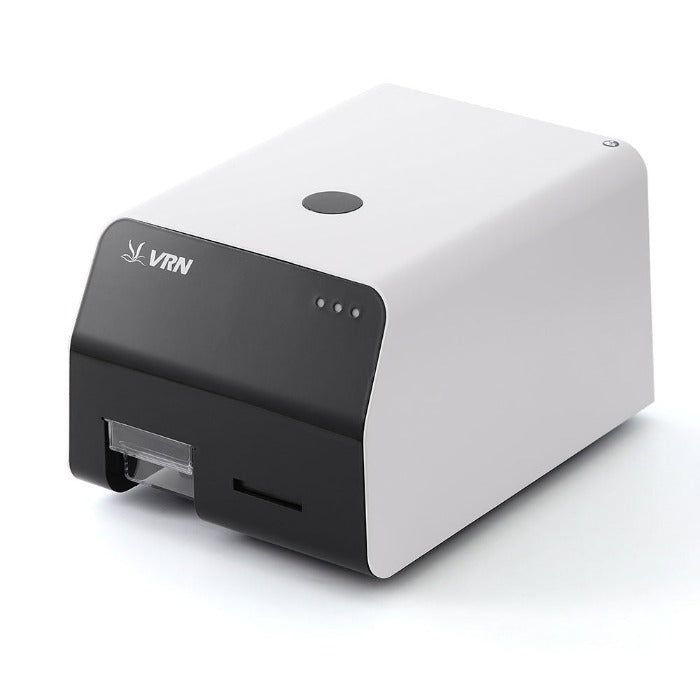

Dental Digital X-ray Imaging Phosphor Plate Scanner

Dental Digital X-ray Imaging Phosphor Plate Scanner. Image grayscale up to 65536 levels (16Bit). High-performance FPGA chip.bring...
SKU: 102110005
Product type: X-Ray Imaging Plate Scanner
$1,999.99
$1,999.99
Please hurry! Only 1000 left in stock
Plugin: US Plug
Subtotal: $1,999.99

Use high-quality raw materials

Promise you after-sales

Free Shipping

Free shipping worldwide

Fast delivery by default DHL or Fedex.

Free Returns

30-day worry-free return and exchange Learn More.
Dental Digital X-ray Imaging Phosphor Plate Scanner

Dental Digital X-ray Imaging Phosphor Plate Scanner

$1,999.99

Dental Digital X-ray Imaging Phosphor Plate Scanner

$1,999.99
Plugin: US Plug

Dental Digital X-ray Imaging Phosphor Plate Scanner. Image grayscale up to 65536 levels (16Bit). High-performance FPGA chip.bring a smoother image processing. Comes with 4 sizes of plates. only 0.1mm in thickness. softer than conventional films. Can be reused more than 1000 times. Fast image reading in 15 seconds.

Overview
  • Image grayscale up to 65536 levels (16Bit).
  • High-performance FPGA chip.bring a smoother image processing.
  • Comes with 4 sizes of plates to meet different clinical shooting needs.

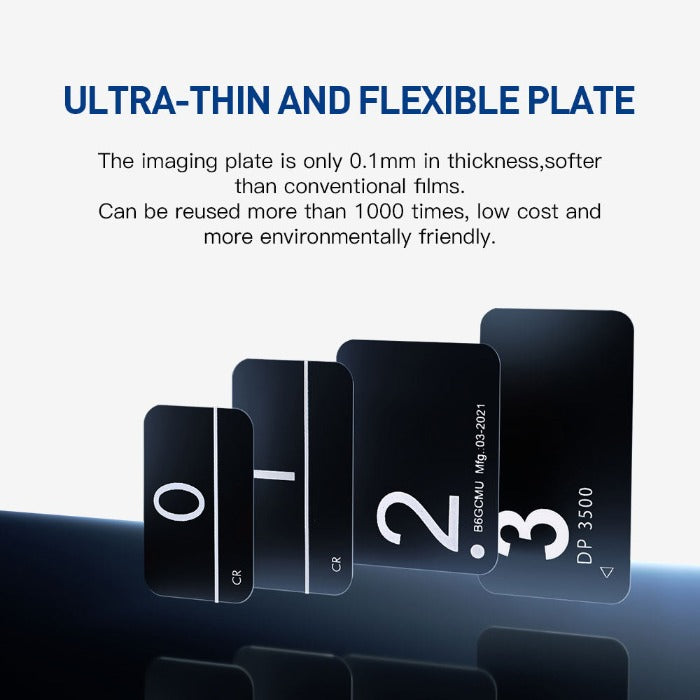

  • The imaging plate is only 0.1mm in thickness.softer than conventional films.Can be reused more than 1000 times. low cost and more environmentally friendly.
  • Support shared imaging reading on the computer side of multiple office.realizes digital diagnosis and treatment.and makes doctor-patient communication more convenient.
  • Fast image reading in 15 seconds.
Specifications
Pixel size:  35μm
True resolution: 14lp/mm
Bits per pixel/Gray scale:  16bit/65536
Operating voltage:  100-240VAC.50/60Hz

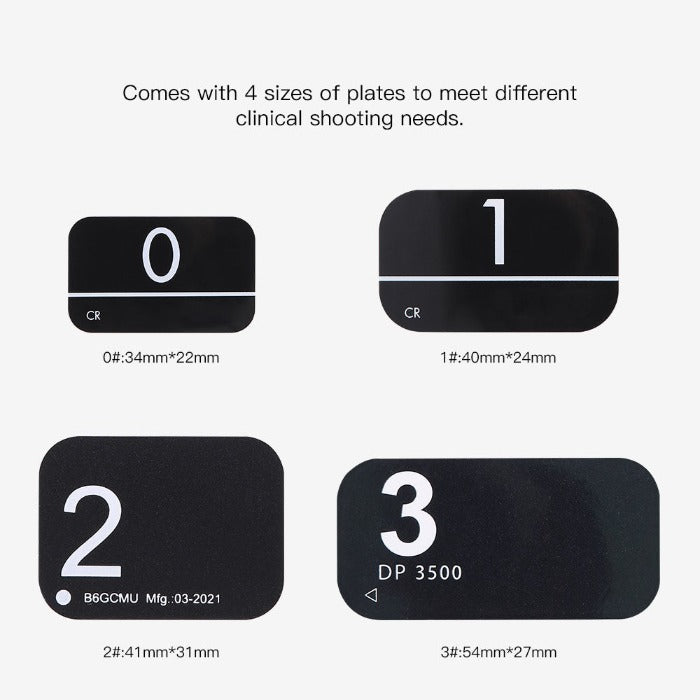

Imaging plate sizes:  size 0#:34mm*22mm
size 1#:40mm*24mm
size 2#:41mm*31mm
size 3#:54mm*27mm
Work Environment
Temperature:  10℃-40℃
Relative humidity: ≤80%
Packing List
Main unit:  1 Set
USB flash drive: 1 Pc
Power adaptor:  1 Pc
Power line:  1 Pc
USB cable:  1 Pc
Intraoral image plate(0#):  1 Pc
Intraoral image plate(1#):  1 Pc
Intraoral image plate(2#):  1 Pc
Intraoral image plate(3#):  1 Pc
Protecting bag(0#):  1 Box (50pcs)
Protecting bag(1#:  Box (50pcs)
Protecting bag(2#):  Box (50pcs)
Protecting bag(3#):  Box (50pcs)
Instruction manual:  1 Pc
Certificate:  1 Pc
Computer Configuration:
Computer system Standard Configuration Minimum Configuration
 Computer Hardware  CPU:Intel Pentium(R) 4 2.6G  CPU:Intel Pentium(R) 4 1.6G
Memory:2G DDR high-speed memory Memory:1G DDR high-speed memory
Hard Disk:500G high-speed hard disk Hard Disk:160G high-speed hard disk
Monitor:1280×1024 liquid crystals Monitor:1280×1024 liquid crystals
Graphics Card: 64M or above  Graphics Card:32M or above
Network Card:Network Card  Network Card:Network Card
Other Hardware USB 2.0 port
Computer Operating System Windows7 .Windows8 .Windows10 .Windows11
